Affordable Helicopter

Votes: 0
Views: 2317
Previous Next

The tail rotor takes up 10 to 15% of the power, and complicates the mechanics. Some time ago I checked available designs and was surprised to find test flights in Germany in 1942 and a Dornier design well, a design in 1991/1992. Either compressed air pushes low octane gas through the rotor blades and at the end a spark plug ignites the fuel, driving the blades D (1942), Jet exhaust to the tip of the rotors, or a Zoche diesel driving an impeller and pushing the air into the rotor blades. Yet none of the projects became commercial. Now, a new design by a French company, again using jet exhaust, however (as seen at the current Paris Air Show) driving the rotor blades through an impeller. First I did not want to submit a design with variations of this theme, then decided to submit at the last minute anyway.

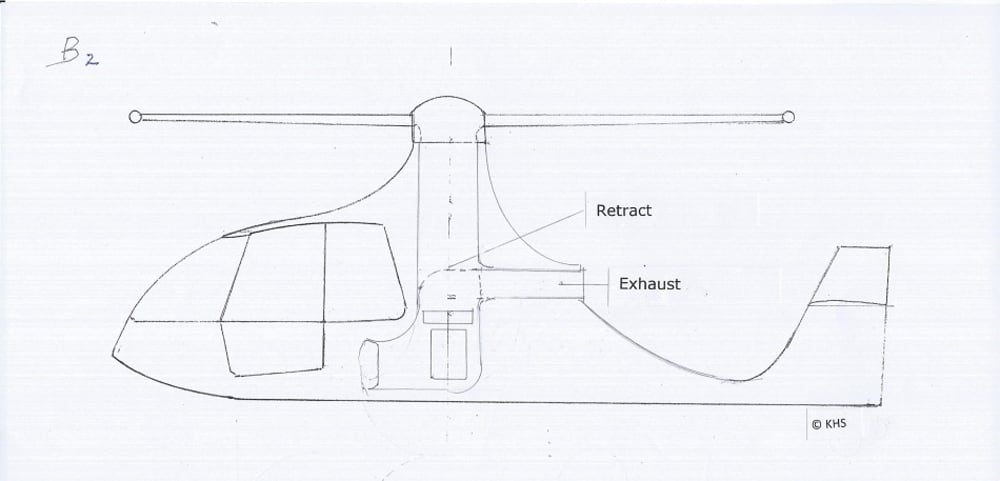

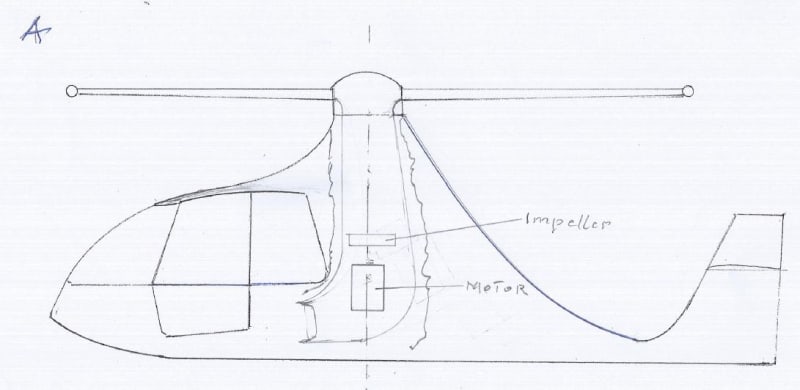

The drawings are not representative of a new design, but rather show several variation of the possible themes, including a combination of helicopter and gyrocopter, already envisioned with the Doblhoff Wn 342 V 4 in 1942.

The future is electric, no doubt! And the variations shown should be seen in this direction, electric drives. What is needed, is to go ahead with design and construction!

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Karl Smarsch
  • Type of entry:
    individual
  • Profession:
    Consultant
  • Number of times previously entering contest:
    3
  • Karl's hobbies and activities:
    Flying and designing anything that flies. But also interested in design in general.
  • Karl belongs to these online communities:
    facebook
  • Karl is inspired by:
    Has been my hobby for many years, especially aviation and space, although my profession is project management for industrial plants. I got stuck in cement!
  • Software used for this entry:
    just my hand. Had to go quick
  • Patent status:
    none
