Passive Refriegerated Vest

Votes: 3
Views: 2538

The concept of this vest is to have a passive cooling system based on two phase changing heat transfer features; heat pipe technology for high level heat transfer and phase changing materials for heat storage.

The benefit of such concept is to have a passive cooling system, based on known technologies, which removes heat from a human body.

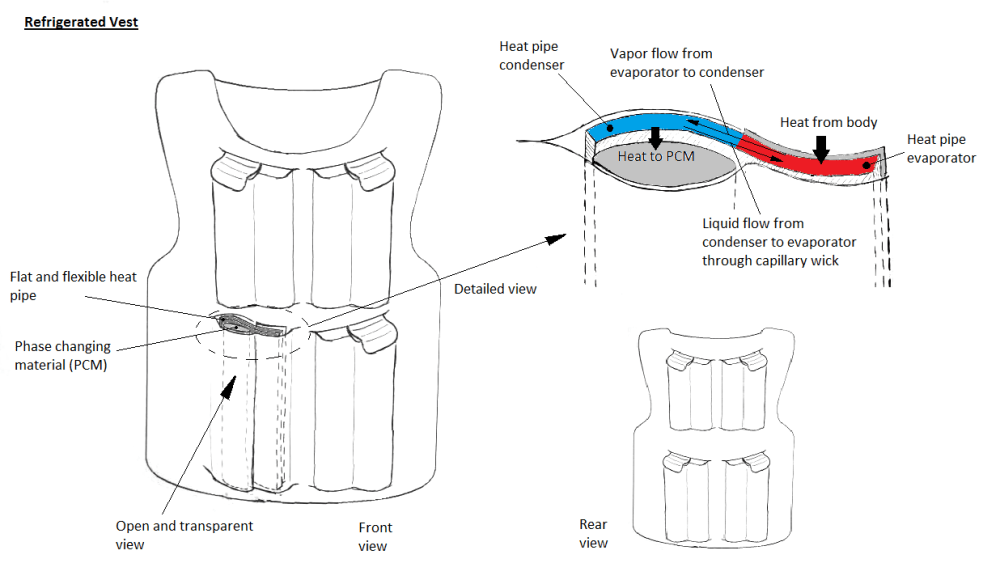

The body heat is transferred by conduction to the flat heat pipe evaporator. The working fluid in the heat pipe changes from liquid to vapor (latent heat of vaporization) and flows to the condenser side. While the vapor condenses back to liquid, the heat is released to the phase changing material module in direct contact with the flat heat pipe (latent heat of condensation). When heat is applied to the phase changing material, it changes from solid to liquid phase (latent heat of fusion).

The flat heat pipes are integrated to the vest, while the phase changing material modules are situated in open pockets.
When the phase changing material modules are all liquid, they are removed and replaced by solid phase phase change material modules.

The thermal contact resistance between the flat heat pipe and its heat exchanging surfaces (body to evaporator and condenser to phase changing material) is decreased using thermal contact material (as commonly used in electronic cooling).

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Boris Maitre
  • Type of entry:
    team
    Team members:
    Mariano Garrido
    Boris Maitre
  • Profession:
    Engineer/Designer
  • Number of times previously entering contest:
    never
  • Boris is inspired by:
    Phase changing heat transfer and heat storage technologies are used in everyday life: desktops, food storage, etc.
    In the aerospace field, refrigerated vests in the aerospace field are still mainly based on heavy active liquid cooling circuits. A smart use of passive phase changing cooling systems has the benefit of improving the robustness of the cooling system.
  • Patent status:
    none
