So, you are on an airport with too many bags and you are struggling to carry them. Won’t it be cool if one or two of them automatically follow you without you pulling them? Well, Tracktech is a technology that helps you do the same!
What is the idea?
The idea is to create a technology that can be added to unintelligent movable products transforming them into intelligent user following devices. This will make the task of transportation a lot easier. This technology can be added to your travel bags so that they automatically follow you whenever you are on the airport. Similarly, the technology can be added to shopping carts which will be able to follow you while you roam around picking up grocery items.
How does this technology work?

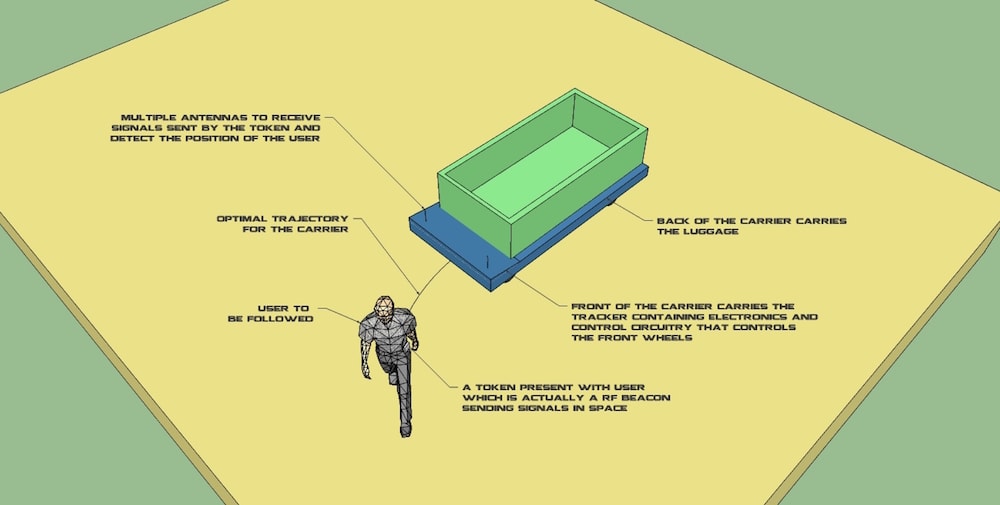

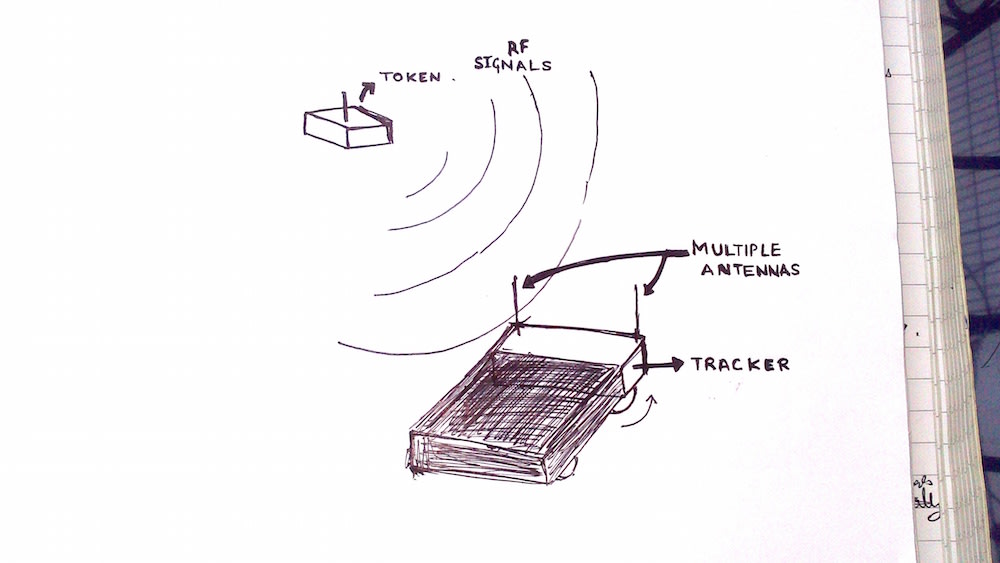

Tracktech involves a token and a tracker pair. The token is present with the user and emits RF signals which are received by the tracker. The tracker detects the position of the token based on RF localization techniques. Finally, the tracker guides the movable product in the direction of the token. The frequency of the RF signals involved is such that they are able to penetrate normal obstructions present in between the token and the tracker.
What is unique about this technology?
Although, there is no product in the market with user following capabilities, research has been going on in this field. The technologies present mostly use inertial sensors and vision based localization methods which are quite costly to implement. Tracktech intends to use RF based localization which can be accomplished at lower costs and makes this technology a practical possibility.
Where can this technology be used?
Tracktech can be used for public assistance by authorities like airports, railway stations and shopping malls. These authorities can easily implement a token based system involving multiple trolleys with Tracktech technology. The token can be given to the customer and the trolley will automatically follow him carrying a load of stuff behind him. This stuff can be the person’s own belongings at an airport or the stuff to buy at a shopping mall.
This technology can even be used for creating products for individual use. For example, creating travel bags that automatically follow the user. This technology can even pave a way for robotic personal assistants.
Has a prototype been developed yet?
Yes, we have created a prototype for Tracktech that shows that this technology is not only a practical possibility but also can be converted into a cost effective product. The working prototype is in the video link provided along with this abstract.
ABOUT THE ENTRANT
Name: Shubham Bajpai
Type of entry: individual
Number of times previously entering contest:never
Shubham's favorite design and analysis
Multisim, MATLAB, Pspice, Google SketchUp
Shubham's hobbies and activities:
Performing magic, Electronics, Coding, Robotics
Shubham is inspired by:
My designs are mostly intended to solve problems present in everyday life. If not, then I am just trying to create something cool.
Software used for this entry:
MULTISIM, Google SketchUp
Patent status: none
