Cam Operated 3 Level Vibrating Screening Machine

Votes: 0
Views: 2008

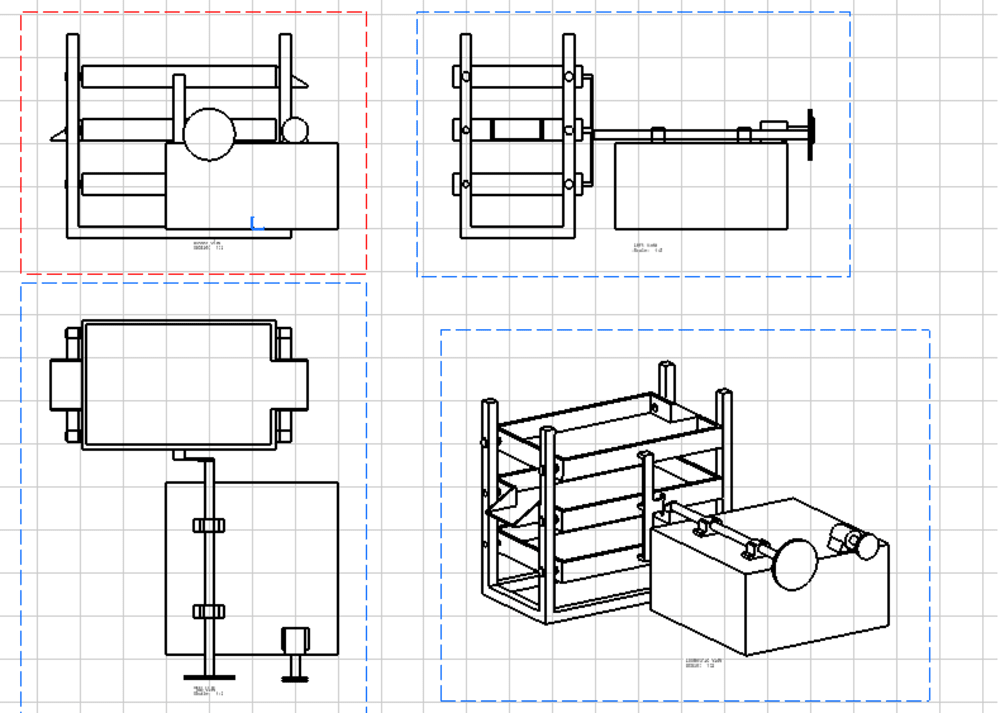

My aim behind desiging this machine was to make easier and faster work for the worker working at the construction site. This machine consists of the 3 level screen system, which is used to separate different grades of material like coal, pebbles, agricultural material and etc.

This system or machine works on the principle of cam and follower arranged which is easy to construct and cheaper in cost because I used scrap material for it.

This very light weight machine compared to other machines present in todays market. machine vibration are controlled by foot speed regulator. We can also the change the screen for different purpose according to the requirement.


Voting is closed!


  • Name:
    Shubham Kamlaskar
  • Type of entry:
  • Profession:
  • Number of times previously entering contest:
  • Shubham's hobbies and activities:
    drawing,visiting new places,gaming,playing
  • Shubham is inspired by:
    construction site workers and farmers
  • Software used for this entry:

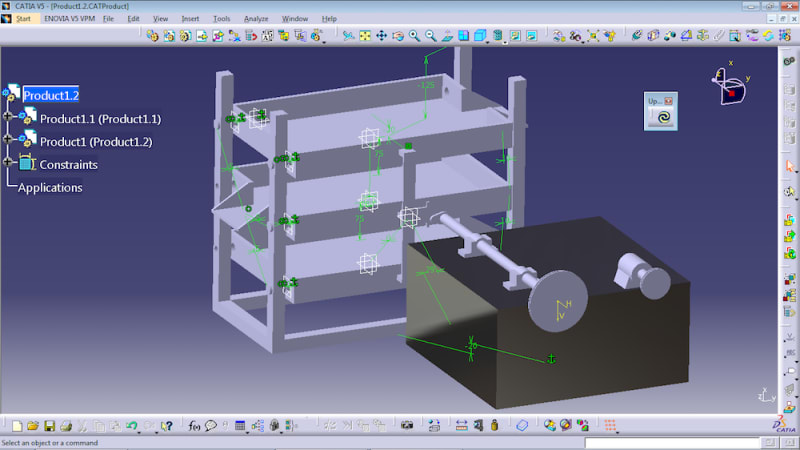

    catia v5
  • Patent status:
