Portable Wireless Dimensional Coordinates Measuring Instrument

Votes: 1
Views: 1390
Electronics
Previous Next

Problem
At present, existing dimensional parameters measuring instruments have limitations like complicated use, time consuming, limited approach, difficult or less reliable interpretation/ readability, required special skills, limited applications, limitations to share or exchange the recorded data.

Solution:
Parts of Instrument Kit:
Minimum two Coordinate Detection Probes (in suitable shapes and sizes).
One wired or wireless Controller CPU with output display.
Mobile app and computer app.
Cloud computing medium to store and exchange of recorded data.

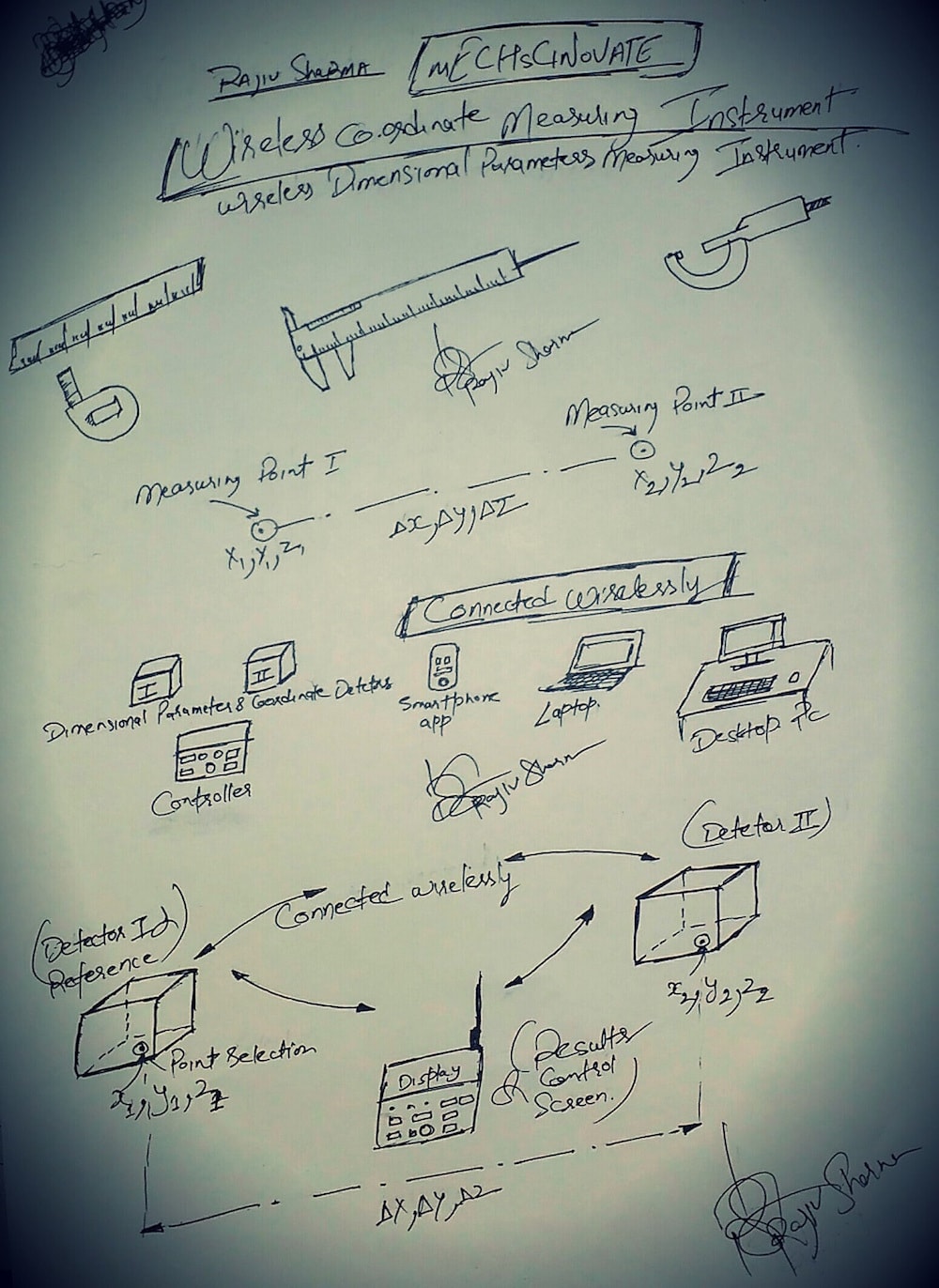

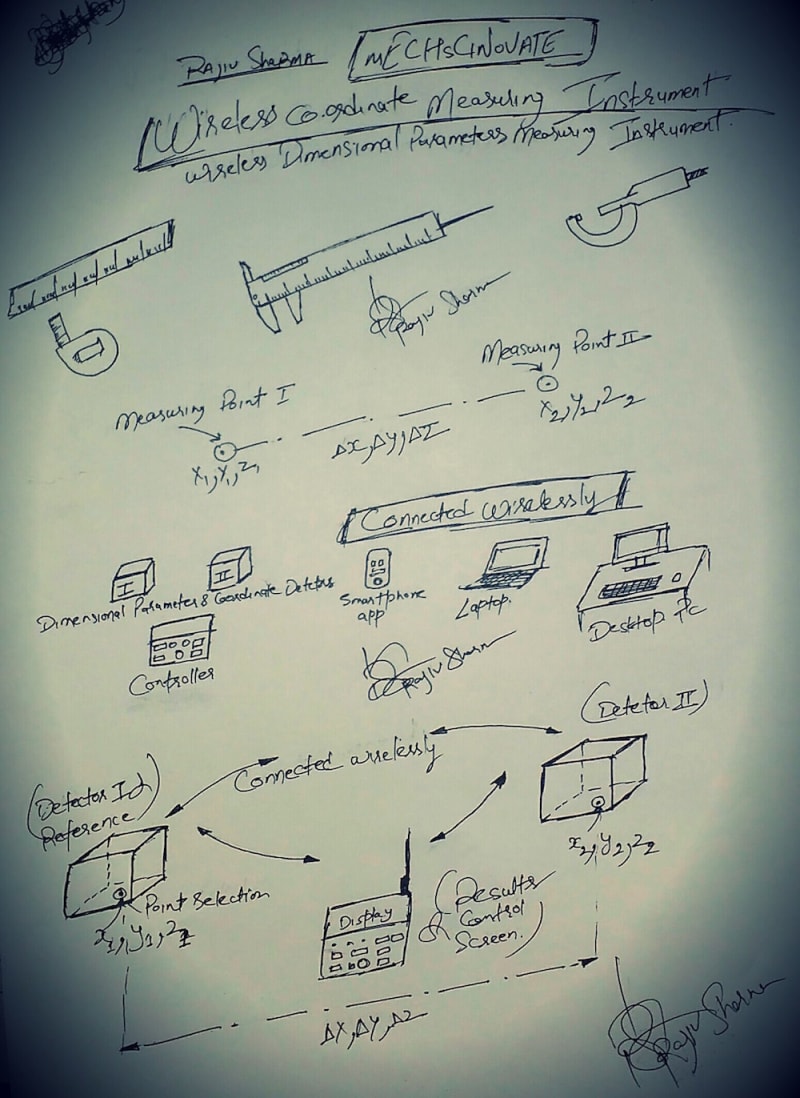

Instrument have minimum two Coordinate Detection Probes to measure the distance between the two ends of an object. It can support more than two Coordinate Detection Probes to measure multiple co-ordinates simultaneously.

Method to use the Instrument:
In start, one of the probe has to be set as reference x=0, y=0, z=0. Place the probes at required measuring points. Probes note down the gap between points in terms of X, Y, Z coordinates by referencing the location of one of the probe that has been referenced. The resultant in form of dimensional parameters will be shown on the controller screen and can be shared with watch, mobile and desktop app via cloud computing.
CPU interprets the recorded dimensional values of two set of coordinates (x1, y1, z1) & (x2, y2, z2) of two probes respectively by using mathematical functions like subtraction, summation etc.
