Fabrication of Modernized Wheelchair With Height Adjustment Mechanism for Physically Challenged

Votes: 28
Views: 2712

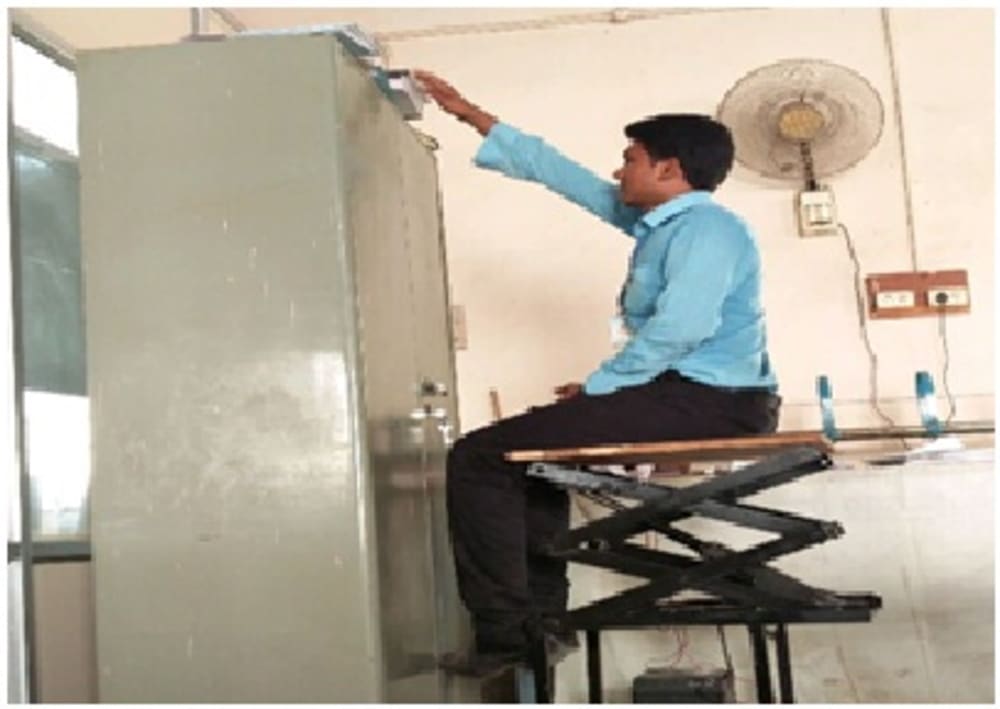

Physically challenged people undergo many discomforts for doing their own jobs by themselves. In this modernized world every one cares for their own duty nobody is there to look after the challenged one, so we are indeed in great privileged for helping them. In general day to day life, physically challenged people face lots of problems & obstacles. Normally, they find it difficult to move from one place to another and require the help of others. Additionally, it is not possible for them to pick objects placed in racks and shelves. They always depend on others to reach those objects.

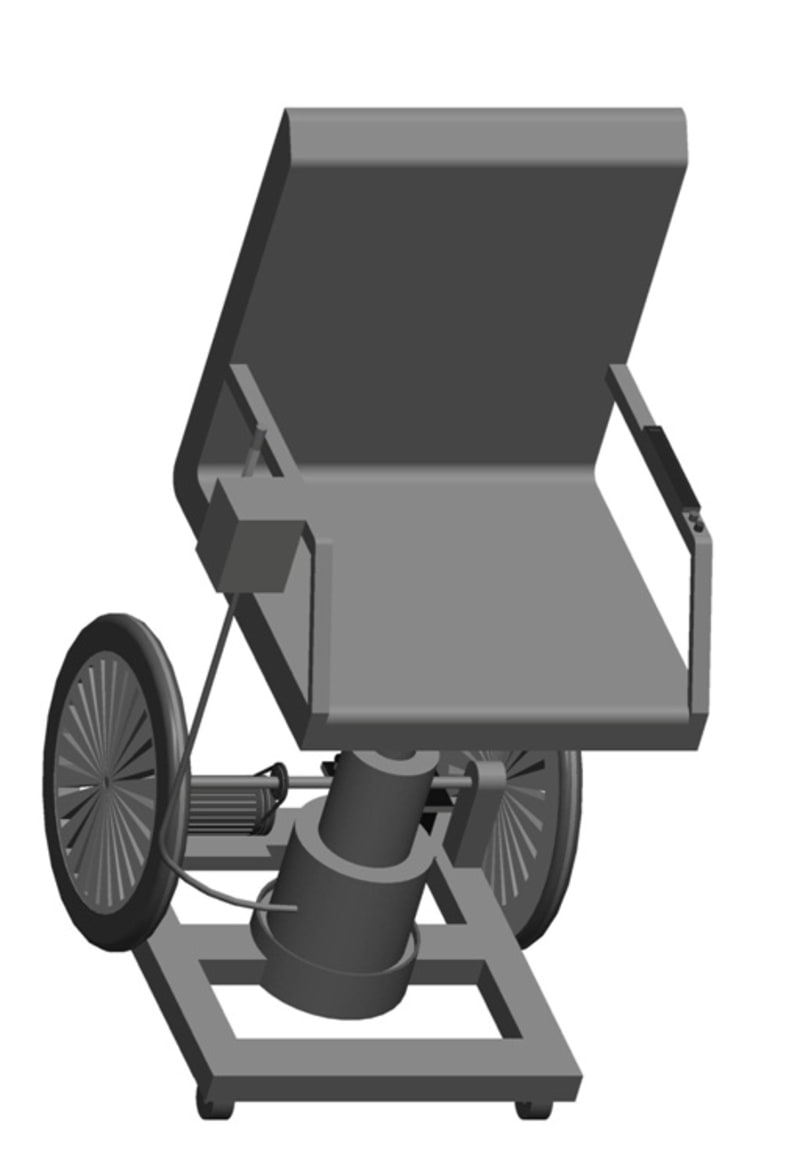

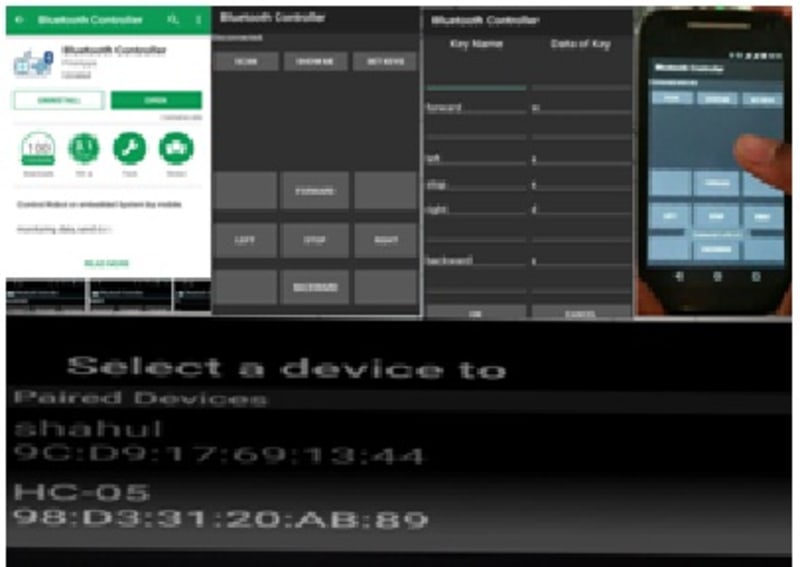

The eco friendly transport hybrid device consists of a height adjustment mechanism comprising of a hydraulic telescopic cylinder & piston for giving unidirectional force through a unidirectional stroke, hydraulic pressure booster for boosting the pressure to very high amount to raise the seat, hose & pipe arrangements for circulating the hydraulic fluid. A storage tank for storing the hydraulic fluid required for lifting and lowering the telescopic piston arrangement. Two mini rollers and two major wheels are attached to the base together with gear box arrangement to enable its movement to different places & a battery the vehicle to move it in forward and reverse direction. A joystick handle arrangement with for raising and lowering the seat of the vehicle. The height adjustment mechanism comprises of hydraulic telescopic cylinder. Telescopic cylinders are a special design of a hydraulic cylinder providing an exceptionally long output travel from a very compact retraced length. Typically the collapsed length of a telescopic cylinder is 20 to 40% of the fully extended length depending on the number of stages. A hydraulic pressure booster is a device used for converting air into the higher hydraulic pressure which is required for operating hydraulic cylinder. Hydraulic pressure booster boosts the pressure to very high amount it leads to raising the seat. Hydraulics tubes & hoses are seamless steel precision pipes and are inter connected by different types of flanges. They serve the purpose of transmitting the fluid from the storage tank to the telescopic hydraulic cylinder arrangement. A Storage tank for storing the hydraulic fluid required for lifting and lowering the telescopic piston arrangement. The storage tank also serves the purpose of holding excess hydraulic fluid to accommodate volume changes from cylinder extension and contraction, temperature driven expansion and contraction, and leaks. The telescopic cylinder receives its source of power from the hydraulic fluid, which is stored in the storage tank.A gear box assembly connected to major wheels fitted with the base to enable the movement of the vehicle to different places. A swivel caster incorporated a wheel mounted to a fork, but an additional swivel joint above the fork allowing the vehicle to freely rotate about 360; thereby enabling the wheel to roll in any direction. This makes it possible to turn the vehicle in any direction without changing is orientation.
