The Longest Turbine Rolling Fans

Votes: 2
Views: 574
Previous Next

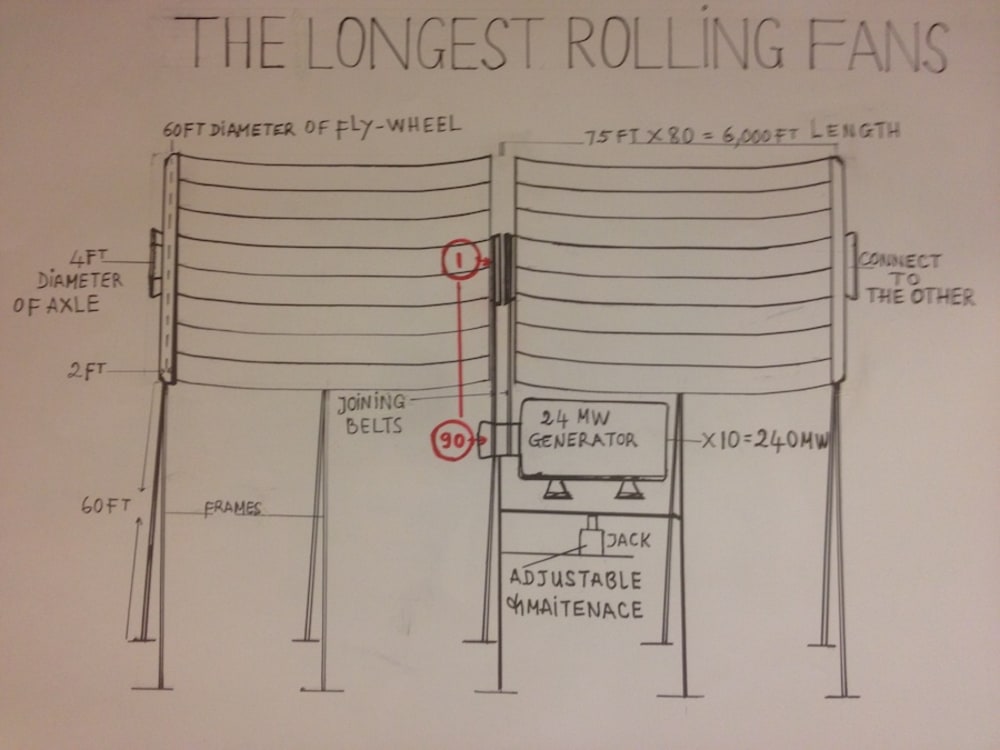

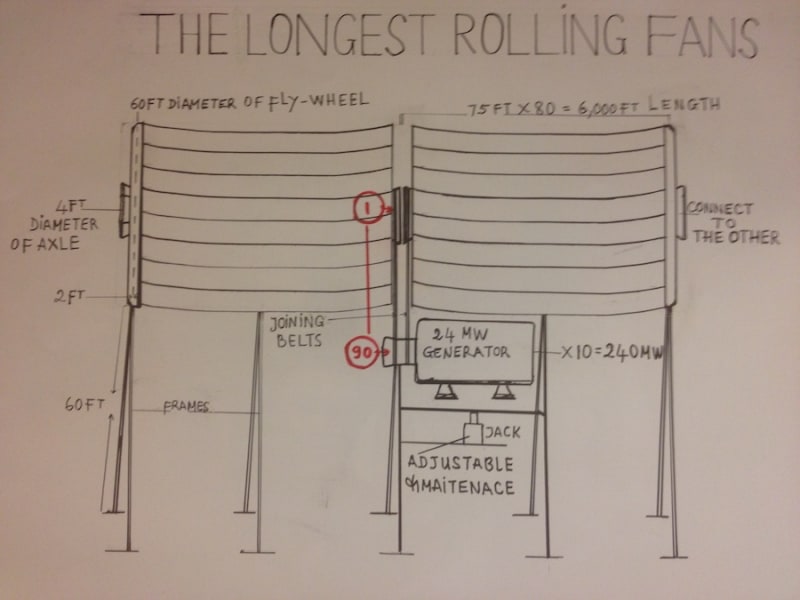

This concept 6,000 ft length x 60 ft diameter and 4 ft diameter of axle at center. 6,000 ft length divide to 80 terminals connect to the other by joining axles. The fly-wheels attach each side of axles from right to left .197 curved fan blades mount on each side of fly-wheel. They all spin at the same times. This concept hook-up to 10 Generators. Each one produces 24 MW capacity X 10 =240 MW .Estimate about 160,000 homes. Place this concept on-shores, off-shores, mountains, flat areas. Where they have strong wind. The best places are on-shores off shores because the wind flow 1 direction. More details please see at pictures. Thanks.

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Huong Pham
  • Type of entry:
    individual
  • Profession:
    Electronic Technician
  • Number of times previously entering contest:
    6
  • Huong's favorite design and analysis tools:
    THE LONGEST ROLLING FANS . I made mistakes . The curved fan blades would be 73 tablets Instead 197 tablets and the thickness would be 1/3 ft. Instead 2 1/2 ft .please revise when reading those . thanks .
  • Huong's hobbies and activities:
    Playing guitar-Drum-Keyboard in the Bands
  • Huong is inspired by:
    It none gas - no pollution . clean air...
  • Software used for this entry:
    no
  • Patent status:
    none
