Mobility Assist: A Multifunctional Sit-to-Stand and Ambulation Therapy Device

Votes: 1
Views: 1817
Medical
Previous Next

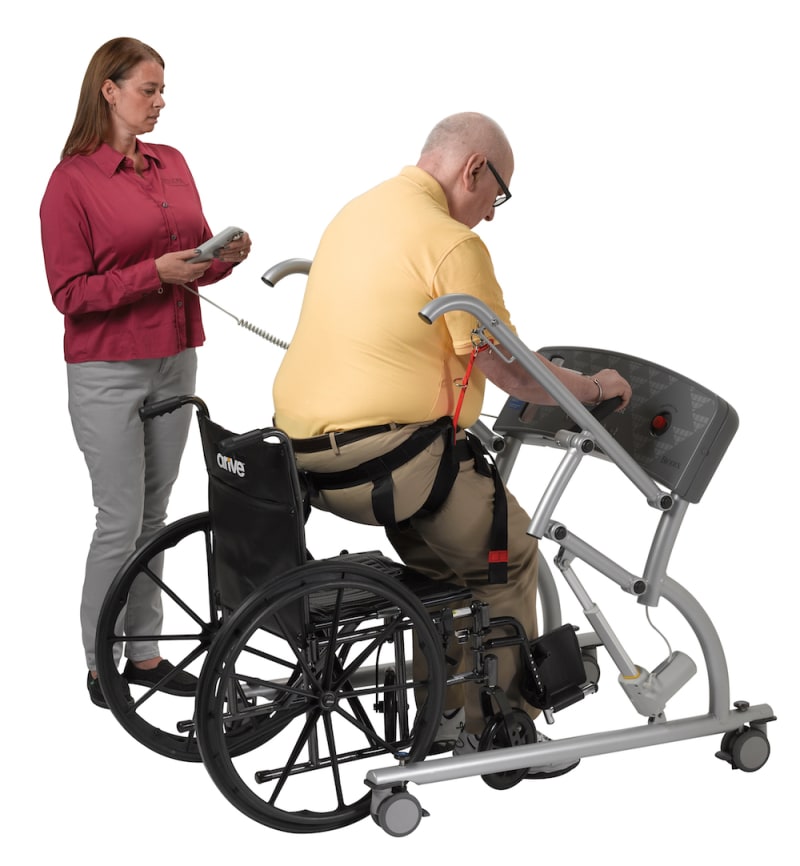

Innovation: The Mobility Assist (http://www.biodex.com/mobilityassist and http://www.mobilityassist.net) is a multifunctional Sit-to-Stand (STS) and ambulation therapy device invented at Stony Brook University and licensed to Biodex Medical Systems for commercialization. The technology behind the device include planar four-bar and six-bar linkage systems that emulate the natural kinematics of human body during the STS motion (six-bar patent is granted, while the four-bar is pending).

Current state of the art devices include wheelchairs, walkers, standing frames and walking frames, all of which are limited to only one aspect of mobility. The Mobility Assist is the first to encompass in one device the ability:

1. To comfortably and securely lift up to a 350 lb person.
2. To maintain that person’s center of gravity within the footprint so that the device will not tip and the patient could not fall even at an angle of 10 degree from horizontal.
3. To fit through a standard 36” door and around standard width wheelchairs.

Manufacturability: The Mobility Assist was designed in conjunction with manufacturing engineering at Biodex to ensure cost effective, quality ensured manufacturability and a sustainable profit margin at an acceptable market price. This was accomplished by making the device symmetrical; reduced part cost and utilizing commercial off the shelf (COTS) components wherever possible. The symmetry of the linkage system on two sides reduced part count and tool fixtures. The result is eight unique welded components and thirty unique fabricated parts. The rest of the parts are readily available hardware and COTS components for lift actuation and control, power, and casters.

The trickiest aspect with rehabilitation products is the connection or interface of the patient to the device, which in this case would be the harness. Mobility Assist incorporates a unique harness that is versatile to fit a broad range of patients, easy to don and doff and comfortable, all at a cost allowing for addition harness purchases.

Marketability: The product will find favor in Physical Rehabilitation and Safe patient handling. It will improve safety and outcomes, as laws are being enacted to not lift patients up. Zero lifting laws are now taking effect in many states. Prompted by American Nurses Association’s “Handle with Care” Campaign which began in 2003, eleven states have enacted "safe patient handling" laws or promulgated rules and regulations. The device is ideal for patients with various physical and neurologic deficiencies and valuable to therapists, rehabilitation nurses and health care workers that must get patients up and walking each day. Facility safety managers will appreciate the product for patient safety as well as workers safety.

The primary markets of this device are Assistive living, skilled nursing, VA Hospitals, In-patient Hospital Rehab. Biodex aims to first offer it as a physical medicine and rehabilitation product to the 46,000 Assisted Living Facilities and nursing homes with the total addressable close to $271.4M (46,000 units times $5,900/unit).

The mobility assist could potentially enable millions of disabled people around the world to live with their loved ones or in ALFs independently and with dignity.
