In situ treatment of dense nonaqueous phase liquids

NASA seeks to license the NASA-developed technology Emulsified Zero-Valent Iron (EZVI) for use in commercial applications. Developed at the John F. Kennedy Space Center (KSC), this process provides for the in situ treatment of dense nonaqueous phase liquids, or DNAPLs. This technology is one of the few methods available that can treat the DNAPL source. EZVI also overcomes the limitations of current DNAPL treatment technologies by providing a method that is quick, effective, and cost-competitive. EZVI is part of NASA's technology transfer program. This program seeks to promote the commercial use of NASA-developed technologies.

THE TECHNOLOGY
Thousands of DNAPL-contaminated sites have been identified across the United States; however, few technologies exist that can treat DNAPLs in a timely and cost-effective manner. For example, traditional pump-and-treat methods can require decades of treatment time and operational costs. Other methods that treat DNAPLs in place, such as steam injection and radio-frequency-heating, are expensive and can cause contaminant mobilization. NASA's EZVI technology overcomes these limitations by providing a method that is quick, effective, and cost-competitive. EZVI involves placing nanoscale zero-valent iron particles into a surfactant-stabilized, biodegradable oil-in- water emulsion. This emulsion is injected into the DNAPL contaminated zones of the subsurface. The DNAPL is then pulled into the emulsion where the contaminant reacts with the zero-valent iron. Through a process known as reductive dehalogenation, the DNAPL and its daughter products are degraded into ethene and other hydrocarbons. These by-products are finally broken down through biological activities in the subsurface.

BENEFITS

* Directly treats contaminant source
* Does not mobilize contaminants
* Requires less treatment time
* Reduces treatment costs
* Produces less-toxic and more-easily degradable byproducts
* Is environmentally safe

APPLICATIONS

* Dye and paint manufacturers
* Dry cleaners
* Chemical manufacturers
* Metal cleaning and degreasing facilities
* Leather-tanning facilities
* Pharmaceutical manufacturers
* Adhesive and aerosol manufacturers
* Government facilities

Figure 1: EZVI micell showing Zero-Valent Iron particles in a surfactant-stabilized Water-In-Oil emulsion

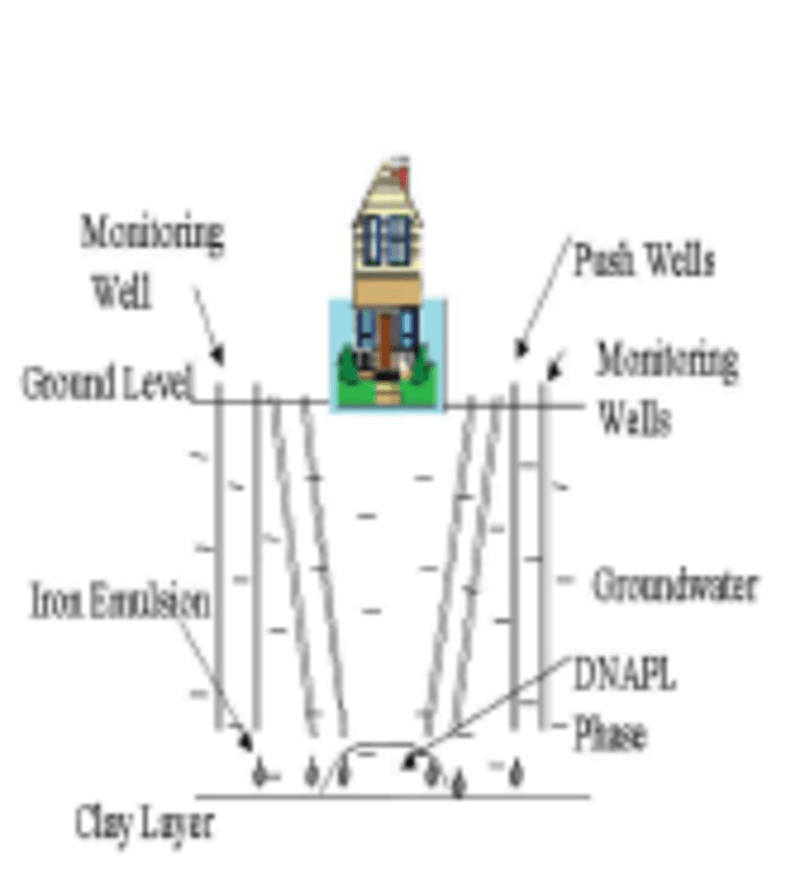

Figure 2: Illustration showing EZVI placed into the DNAPL source zone
