Gravitational Assisted Space Shuttle Launch

Votes: 28
Views: 572
Aerospace & Defense
Previous Next

Earth exerts a gravitational force and pulls down every object that attempts to leave or escape it. Therefore, in order to break free from Earth’s gravitational pull, it is essential for a rocket to attain an enormously high speed. This velocity is known as the ‘escape velocity’. For Earth, the escape velocity value is 11.2 kilometers per second (25,020 mph); this means that you have to accelerate a rocket at 11.2 kilometers per second in order to make the orbit.

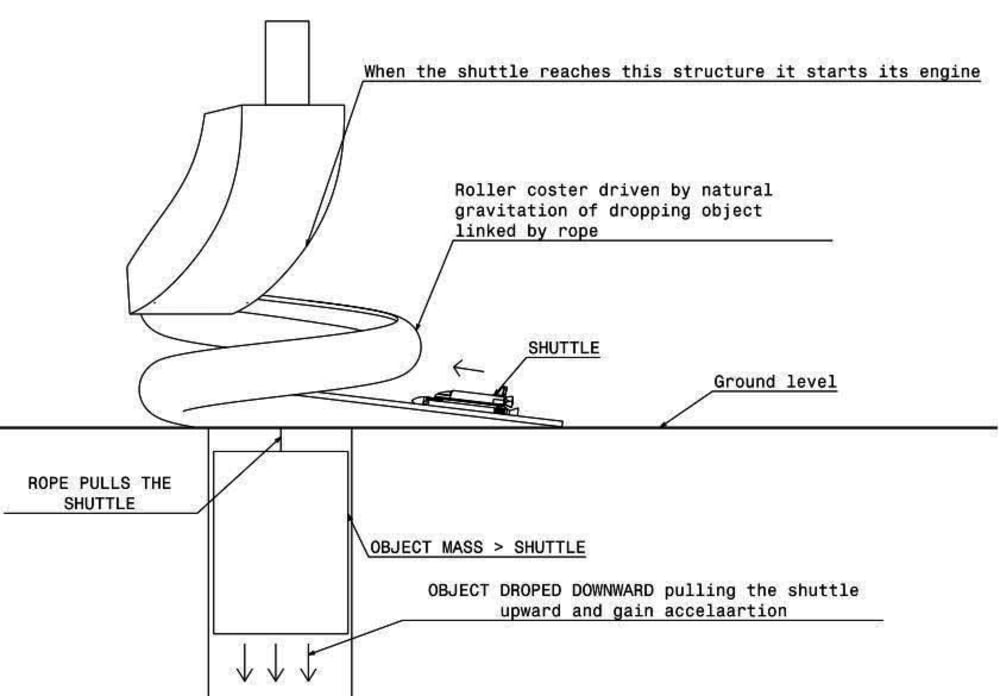

This project is about building a mechanism that uses gravitational force to launch space shuttles instead of against it to achieve the escape velocity with lower cost. This is done by integrating roller coaster principle, Newton law and existing shuttle mechanism. First we build a roller coaster which can transport space shuttle. Then we make hallow shaft below ground in center of the roller coaster. In the hallow shaft we fix an object which has more weight than an ordinary shuttles. The object is fixed with the rollers of the roller coaster by pulley and high strength multiple ropes. Then we place the space shuttle on the transporting rollers and we drop the underground object in free fall. Since the object is connected with the rollers of the roller coaster it pulls the space shuttle up ward because of the weight difference and the pulleys are fixed from the top thar will force the rollers carrying the shuttle be pulled fast. This mechanism makes the space shuttle gain acceleration quickly and travels upward in high speed via the roller. When the shuttle reaches a certain speed and point it activates its engine. At this point the energy consumption to lift the shuttle is far less than the shuttle starts from 0 meter per second. This mechanism helps the shuttle collect potential energy which is converted in to usable energy for the launch. Because the dropping object has extremely high weight, a fluid damping mechanism is used in the underground shaft. Meaning, there is a large amount of fluid at the bottom of the shaft and when the dropping object reaches the bottom the fluid prevents it from high impact acting as a natural damper. Then to start another launch we can slowly elevate the massive object underground to ground level and start the process again. I have done the numerical analysis and the result checks out. But simulation is needed to make the idea more presentable to clients. This mechanism is simple and what makes it different is in the scale of the weight and there are far more complex structures and mechanism has been built in the world.

This will change many views on roller coaster on saving energy to build potential energy that will be converted into kinetic energy, redesign the process of spaces ship launch and so on.

Note that since the mechanism always have one path as the current launch used, it will not be same as a run way.

For more information visit https://www.globalinnovationexchange.org/innovation/gravitational-assisted-space-shuttle-launch

Voting

Learn how to vote for your favorites.

  • ABOUT THE ENTRANT

  • Name:
    Anteneh Gashaw
  • Type of entry:
    individual
  • Profession:
    Engineer/Designer
  • Anteneh's favorite design and analysis tools:
    Catia and autocad
  • Anteneh belongs to these online communities:
    https://www.linkedin.com/in/anteneh-gashaw-777276b
  • Anteneh is inspired by:
    I have dedicated my life for invention and research because not only I have big dreams but also it is my only way out of poverty. We all have a talent we know or did not find out yet. Mine happens to be inventing. I discovered this talent of mine when I was in second year student during my university life. Starting from that point everything seemed not important except creating new ideas. So, until now I have invented more than 50 inventions which are new to the world and the rest are intended for Ethiopia that will change the life of many people including mine. But because of poverty, theft and many reasons I could not manage to make it. But all that matter is I will never give up. I will invent until and after I become successful. That makes me a strong entrepreneur. My skills are aided with a mechanical engineering degree on design, production and sales expertise. You can find some of my inventions via https://www.herox.com/crowdsourcing-community/antenehgashaw-123126
  • Patent status:
    pending
