Automated Mural Painting on the Exterior of Large Buildings

Votes: 1
Views: 2102

Automated Painting of Murals on the Exterior of Large Buildings

a.Updating the exterior of large buildings requires labor intensive maintenance.
b.Painting extremely tall murals is dangerous and beyond the skills of many artists and painters.

Automate the painting process by scaling-up inkjet printer technology
a)Design and build a large 4-head paint sprayer for the colors: red, yellow, blue, and black.

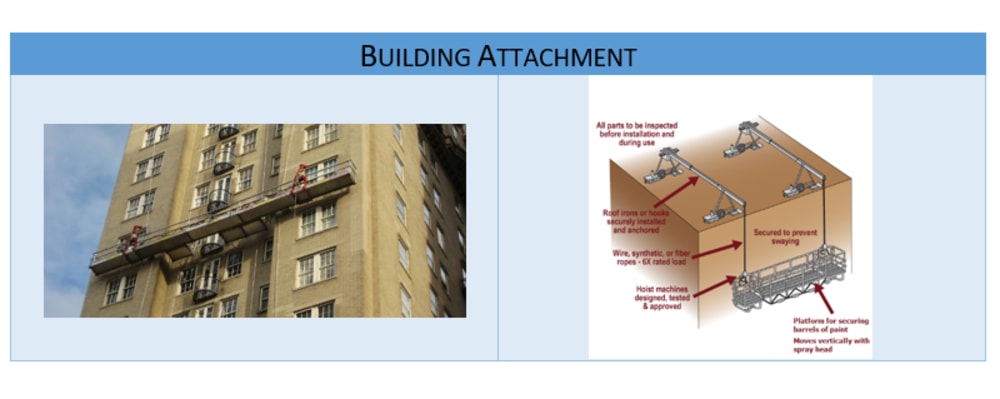

b)Erect scaffolding and motorized horizontal and vertical gantries near the face of the building.
c)Attach 4-head paint sprayer to horizontal gantry.
d)Securely attach required volume of paint (e.g. 55-gallon drums of red, yellow, blue, and black) to the vertical gantry.
e)Download desired image to the paint-head controller.
f)Begin the automated painting process.

1) Take a picture of the desired imageSave image in a typical format (jpg, tiff, bmp…, etc.)
2) Determine the dimensions of area to be paintedMeasure building façade noting the:
c.Window locations
e.Obstructions – e.g. Fire escape
3) Input building measurements into Mural Painting Application.Application analyzes the image to determine:
a.The volume of paint.
b.Time required to complete mural.
c.Critical regions of the image overlaid on the building.
4) Compensate for overspray & mistProtect Surrounding Areas:
a.Install large hood over paint-head.
b.Attach vacuum source to create negative pressure in paint hood.
5) Press Start on the automated Mural Painting Application.

Combines, changes, and adapts existing technologies
a.Designing and build a 4-head airless paint sprayer.
b.The Mural Painting system uses technologies derived from ink-jet printers.
c.The building’s façade is a 3-axis cartesian coordinate system.
d.Calculating (scaling up) the volumes of each color is contained in a typical image file.
e.Horizontal and vertical gantries represent the XY-plane; The Z-axis is the distance from the façade to the paint-head.
f.Sensors and software compensate for variations in gantry data to the actual paint-head location.

All manufacturing technologies exist
a.Scaffolding requirements (stability) are scalable
b.The paint-head is attached to the motorized vertical and horizontal gantries. The paint-head location (x-y coordinates) is determined via encoders on the gantries.
c.Dispensing paint quantities via the 4-head airless sprayer uses calculations similar to ink-jet printers
d.Calculating the volumes of each color is contained in pixel data of the image file(s). The volume is scaled to the square footage of the building’s façade.

The Mural Painter is a tool. The product is what the device creates: A Mural on the side of a building.
a.Training will be needed for:
a.The Mural Painting Application
b.Scaffolding setup
c.Sensor calibration(s)
d.Verification of façade specifications
e.Use of the system (cleaning, prepping, maintenance…, etc.)
b.The individual systems and components do not require unusual talent or knowledge. Success requires understanding how the systems interact.
