Caribbean Sargassum Problem 5.0

Votes: 2
Views: 136

Problem

To track Sargassum’s ocean path the Optical Oceanography Laboratory is currently using the Sargassum Watch System (SaWS) which is designed to use satellite data and numerical models to detect and track pelagic Sargassum in near-real time. The raw satellite data are provided by the U.S. NASA and USGS. These data are downloaded and processed through a Virtual Antenna System using both standard and customized algorithms. Of particular importance is the customized data product, namely the floating algae index (FAI) to detect floating algae and other materials on the ocean surface. These data has enabled mapping the route of the Sargassum from 2018 to this date but the varying ocean current and other factors made the prediction challenging. Because of that the Caribbean are still getting a surprising amount of Sargassum on their shores which is very hard to manage this much amount of Sargassum without clean up planning, budget, machinery and personal allocating. Since the Sargassum starts to decay as soon as it reaches on the shore and starts to release hydrogen sulphide, they do not have the time to plan but take action which made their work ineffectual.

Solution

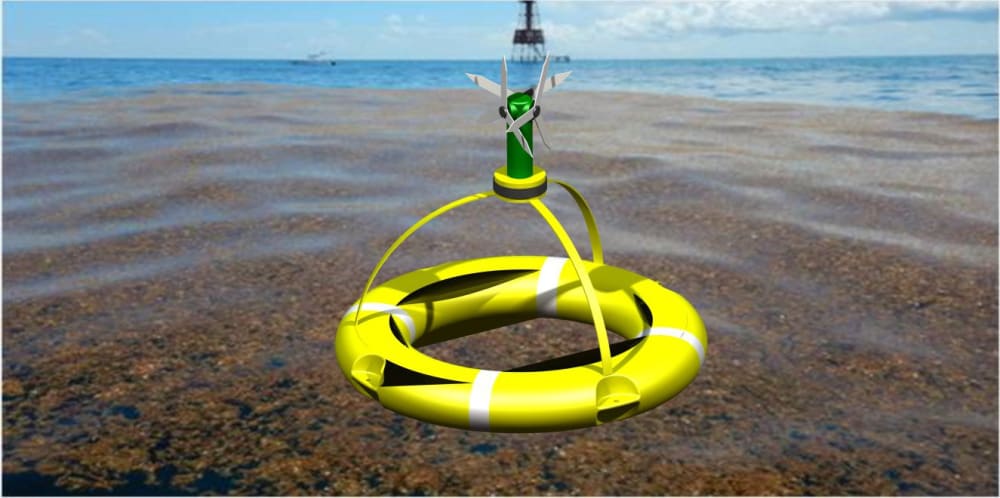

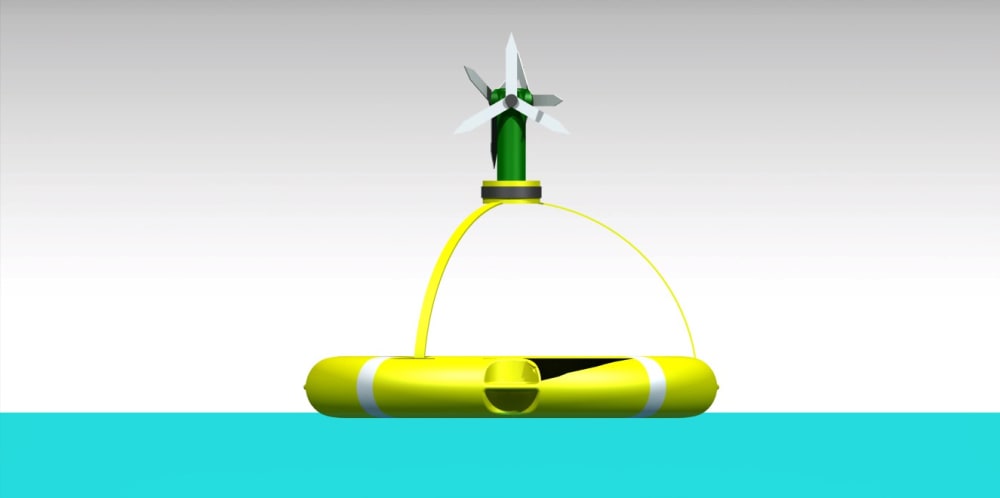

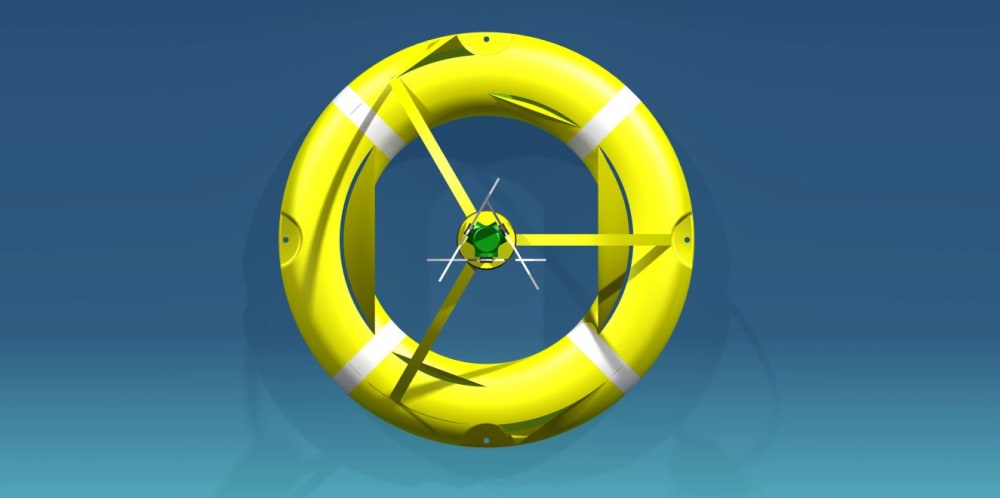

This project is about building an automation coast guard that can detect and report when large volume of Sargassum approach to the shore of the Caribbean so that the authorities have time to plan and allocate resources for the cleanup. This is done by installing a floating lifesaver ring structure that can constantly search the ocean surface using a 360 degree camera to find Sargassum by its distinctive color and continuously smell the surrounding to find the smell of hydrogen sulphide to confirm that when the camera detects the Sargassum, it won’t be false positive. When both the camera and the odor sensor detect the Sargassum, signal will be sent to some controlling station using a GPS system. Since the mechanism has multiple electronic devices, electric power is needed. In order to make this system self sufficient, new type of wind turbine is installed at the top of the structure. Since the floating structure is not stationary, it is very likely that it rotates on the axis of the stand frequently which is hard for the turbines to rotate and we cannot install yaw mechanism to adjust the turbine in direction of the wind because of the weigh increment will sink the structure. So this new turbine has three rotors separated in 120 degrees and each of their blades is aligned 30 degree off sated from the next. This alignment will ensure the rotation of at least one rotor and when one rotor starts to rotate all the three will rotate because the blades act as a gear. In order to cancel the sound generation from collusion of each blade, sound absorbing foam will be plated on the edge of the blades. This mechanical power is used to generate constant supply of electrical power because since the system has small power, dynamo can be used.

https://hackaday.io/project/177855-caribbean-sargassum-problem-50

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Anteneh Gashaw
  • Type of entry:
    individual
  • Profession:
    Engineer/Designer
  • Number of times previously entering contest:
    3
  • Anteneh's favorite design and analysis tools:
    Catia and autocad
  • Anteneh belongs to these online communities:
    https://www.linkedin.com/in/anteneh-gashaw-777276b
  • Anteneh is inspired by:
    I have dedicated my life for invention and research because not only I have big dreams but also it is my only way out of poverty. We all have a talent we know or did not find out yet. Mine happens to be inventing. I discovered this talent of mine when I was in second year student during my university life. Starting from that point everything seemed not important except creating new ideas. So, until now I have invented more than 50 inventions which are new to the world and the rest are intended for Ethiopia that will change the life of many people including mine. But because of poverty, theft and many reasons I could not manage to make it. But all that matter is I will never give up. I will invent until and after I become successful. That makes me a strong entrepreneur. My skills are aided with a mechanical engineering degree on design, production and sales expertise. You can find some of my inventions via https://www.herox.com/crowdsourcing-community/antenehgashaw-123126
  • Software used for this entry:
    Catia V5
  • Patent status:
    pending
