Step On Manual Pressurized Shower

Votes: 1
Views: 311

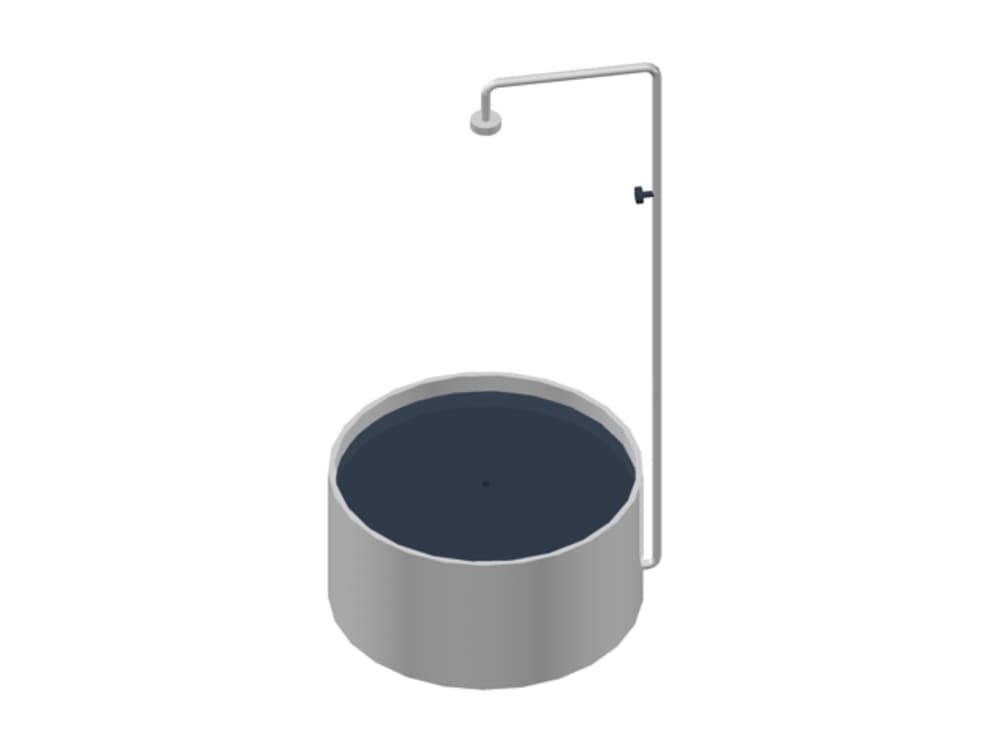

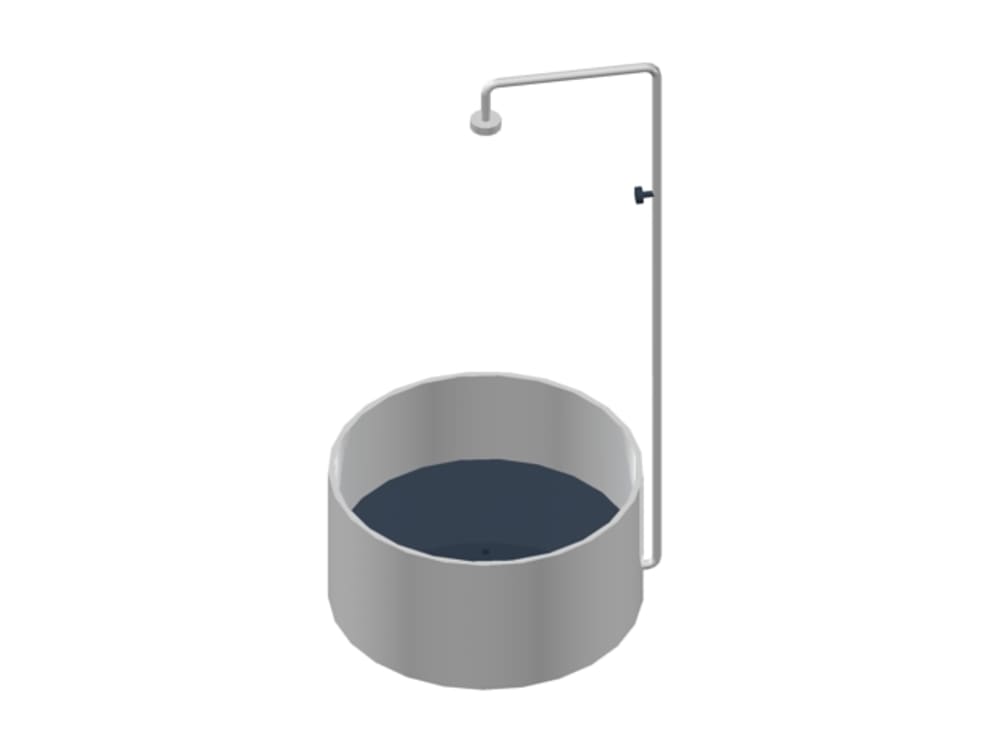

This project is about building a manual portable step on shower that has high water drop pressure without using any device. This is done by using the weight of the person taking the bath as source of pressure generator for the water being used for the bath. There are four parts in this mechanism; the tank which contain the water, the circular plate on top of the water tank where the person taking the bath steps on, the pipelines and the valve. The operating mechanism of this device is simple. First water is filled on the water tank all the way up to the valve level. Before use the valve should be closed. Once water is filled and valve is closed, the person taking the bath will step on the circular plate which seals the top of the water tank. Since the valve is closed and water is incompressible, no movement of water and no change of level of the stepping on plate will occur. After the user steps on the plate, as soon as the valve is opened, water will start to flow from the water tank to the shower head with high pressure which will be used to take a bath. The used water is immediately discharged via the hole on the circular plate before dirty water is accumulated on the foot of the user to outside without being mixed with the water in the water tank through the separated partition. When the user closes the valve the water stops flowing and the height level of the step on plate remains on one spot.

https://hackaday.io/project/183515-step-on-manual-pressurized-shower

Voting

Learn how to vote for your favorites.

  • ABOUT THE ENTRANT

  • Name:
    Anteneh Gashaw
  • Type of entry:
    individual
  • Profession:
    Engineer/Designer
  • Number of times previously entering contest:
    3
  • Anteneh's favorite design and analysis tools:
    Catia and autocad
  • Anteneh belongs to these online communities:
    https://www.linkedin.com/in/anteneh-gashaw-777276b
  • Anteneh is inspired by:
    I have dedicated my life for invention and research because not only I have big dreams but also it is my only way out of poverty. We all have a talent we know or did not find out yet. Mine happens to be inventing. I discovered this talent of mine when I was in second year student during my university life. Starting from that point everything seemed not important except creating new ideas. So, until now I have invented more than 50 inventions which are new to the world and the rest are intended for Ethiopia that will change the life of many people including mine. But because of poverty, theft and many reasons I could not manage to make it. But all that matter is I will never give up. I will invent until and after I become successful. That makes me a strong entrepreneur. My skills are aided with a mechanical engineering degree on design, production and sales expertise. You can find some of my inventions via https://www.herox.com/crowdsourcing-community/antenehgashaw-123126
  • Software used for this entry:
    Autocad
  • Patent status:
    pending
